Interaction between main modules

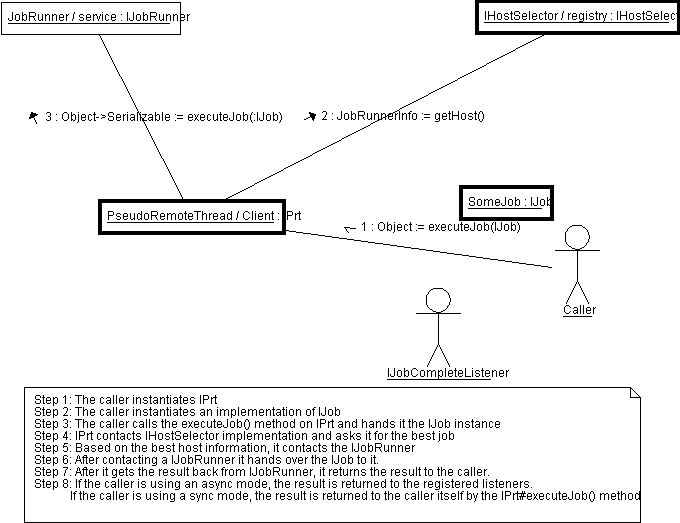

The diagram shows the interaction between the main modules of the system in the async (non-blocking)
mode. The synchronous (blocking ) mode is similar except for the first call, which is blocking and
there is no JobCompletListener.

Interaction between main modules of Prt
